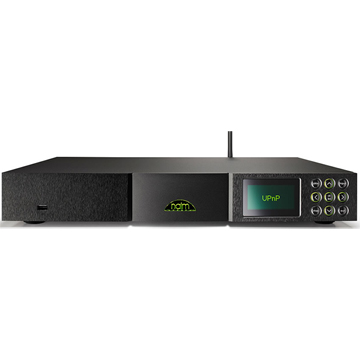

NAIM ND5 XS 網路播放器

產品型號 : NAIM ND5 XS
市場售價 : NT$165000.元
網路特價 : NT$165000.元
購買數量: (單位︰件)
貨物狀況 : 正常供貨




商品特色



·        UPnP™-enabled to stream audio files from any hard disk server, such as HDX or UnitiServe, network attached storage (NAS) or             laptop/computer via the home network

·        vTuner 5* full service Internet radio

·        Optional FM/DAB** module

·        Front-panel USB port for replay of MP3 player/iPod and USB-stored audio

·        Apple authenticated enabling digital output from iPod for ultimate quality iPod control, charging and front-panel content display when connected to front-panel USB port via standard iPod digital connector

·        Three 24bit/192kHz-capable S/PDIF inputs for external digital sources

·        Multiple intuitive control interfaces: front panel, remote control handset and n-Stream

·        iPhone, iPad or iPod Touch control app

·        Internal architecture for hi-res audio playback up to 24bit/192kHz over the network

·        Ethernet network connectivity for reliability. Wireless also available for convenience.

·        Streams/plays WAV, FLAC, ALAC, AIFF, AAC, Windows Media-formatted content, Ogg Vorbis and MP3 files from any suitable UPnP™ device or USB-connected storage device

·        Gapless playback available on all lossless file formats and some lossy formats (exc Ogg Vorbis and Windows Media-formatted content)

·        Digital output on 75ohm BNC connector

·        Switchable DIN/RCA Analogue outputs

·        Wired remote in

·        Wired remote out for preamplifier volume control and input switching, also for CD player and DAC control

·        Performance upgradeable with addition of external XPS or 555 PS power supply or external

·        DAC digital to analogue converter

·        USB mini-b connector for software upgrades

·        SHARC DSP with Naim proprietary 16 times digital filtering and buffering

·        Naim proprietary 16 times oversampling and digital filtering

·        Linear power supply with 200VA toroidal transformer with four separate windings for digital,

·        DPS, audio clock and analogue sections

·        Seven pole analogue output filtering

·        Optical isolation of data control lines

·        Ultra low noise triple-regulated power supplies

·        Ground selector switch for optimum performance

·        High quality Burr Brown PCM1791A DAC

·        Naim reference non-magnetic, low-resonance low microphony case

·        OLED display for high contrast and easy visibility

·British design and build


商品規格



AUDIO INPUTS
S/PDIF 1x BNC, 1x RCA, 1x optical, sample rates up to 192kHz/24bit
USB type A Front panel socket for iPod, iPhone, iPad and memory sticks
UPnP Wired Ethernet (RJ45) or Wi-Fi
Antenna Inputs DAB/FM, Wi-Fi (802.11 g or n at 2.4GHz)
Tuning Range DAB (Band lll and L Band), FM 87.5-108MHz (FM/DAB version only)
Minimum Load Impedance 10kΩ
AUDIO OUTPUTS
Minimum Load Impedance 10kΩ
Analogue Outputs DIN and RCA, 2.1V rms at 1kHz at full level (Fixed)
Output Impedance 32Ω maximum
Frequency Response 10Hz - 20kHz, +0.1/-0.5dB
thd+n <0.02%, 10Hz to 20kHz at full level
Phase Response Linear phase, absolute phase correct
Digital Outputs (type) S/PDIF, 75Ω BNC

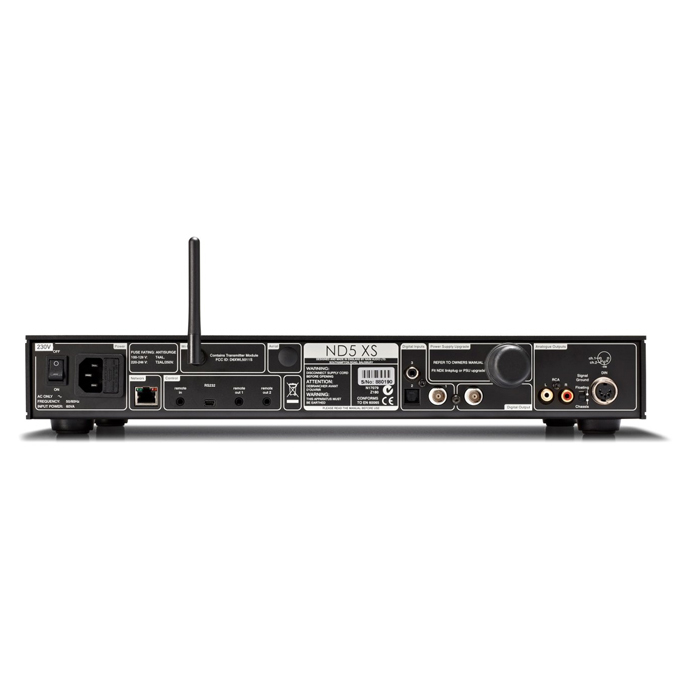

CONNECTIVITY
Other DAC, Hi-Line, Power-Line, long-range WAV antenna
Infra Red Front panel window RC5
Remote Input 3.5mm jack on rear (RC5)
Remote Output 3.5mm jack on rear (RC5) x2
Rear USB For updates only (USB mini-B)
FORMATS
Audio Formats Supported WAV, AIFF and FLAC (up to 24bit/192kHz ) ALAC (up to 24bit/96kHz) Ogg Vorbis (up to 320bit/s) Windows Media-formatted content-9 (up to 320kbit/s) Playlists (M3U, PLS) MP3, M4a (up to 320kbit/s)
iRadio Service Provider vTuner 5* full service Internet radio (Windows Media-formatted content, MP3 streams, MMS, Ogg Vorbis)
USER CONTROL INTERFACES
Front Panel Yes
Handheld Remote handset included and optional n-Stream app for iPod, iPhone and iPad devices, downloadable from App Store
AMX and Creston Intstaller customisable reference apps available
POWER
Supply Voltage 100V or 115V or 230V; 50 to 60Hz
Power Supply Options XPS, 555 PS
Power Consumption (maximum) 60VA
PRODUCT CERTIFICATIONS & LICENSES
Certifications Apple (Made for iPhone), vTuner Premium
Licenses MP3, AAC, DAB, Windows Media
PHYSICAL
Dimensions 70 x 432 x 301mm (H x W x D)
