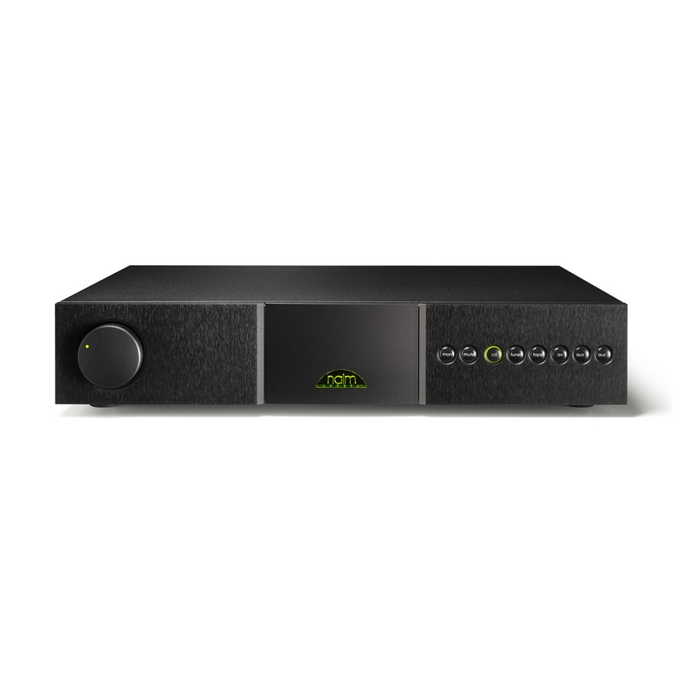

NAIM NAC 202 前級擴大機 |
|
|
商品特色 |
|
|
|
|
The Naim NAC 202 combines first-class sound quality with flexibility, style and excellent value. Significant improvements in technology led to an entirely new range using new high quality star-earthed circuit boards, combining the classic Naim values of musicality and power with flexibility and value. The Naim NAC 202 may either be powered by a NAP 155 XS or NAP 200 amplifier or significantly upgraded by adding Naim power supplies to independently feed the analogue audio and digital control circuits. |
|
|
|
|
|
|
|
|
|
商品規格 |
|
Analogue Inputs |
4 x DIN, 2 x DIN, RCA |
Input Sensitivity |
75mV |
Input Impedance |
47kΩ |
Other Inputs |
AV input configurable for unity gain |
Analogue Outputs |
2 x variable (DIN), 1 x fixed (RCA) |
Line Outputs Fixed (level) |
75mV, 600Ω |
Line Outputs Variable (level) |
775mV |
Output Impedance |
<50Ω |
Minimum Load Impedance |
10kΩ |
Power Outputs |
Naim phono amplifier |
Power Supply |
NAPSC |
Infra Red |
RC5 |
Remote Input |
RCA on rear (RC5) |
RS232 |
optional (DE9 female) |
Supply Voltage |
24V |
Power Supply Options |
NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap |
Dimensions |
87 x 432 x 314mm (H x W x D) |
Weight |
7.0kg |
Front |
Brushed and black anodised |
Case |
Black powder coated |
|
|
|
|
|
|
