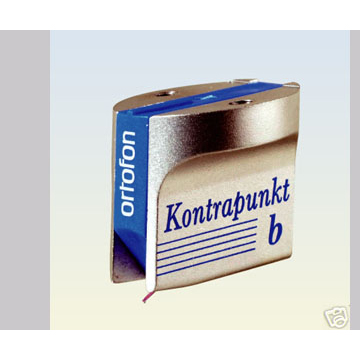

| ORTOFON MC KONTRAPUNKT B 唱頭 |
|
|
 |
商品特色 |
|
|
|
|
|
|
|
|
|
|
|
|
商品規格 |
|
|
|
Technical data |
|
|
Output voltage at 1000 Hz, 5cm/sec. |
470 µV |
|
Channel balance at 1 kHz |
< 1,5 dB |
|
Channel separation at 1 kHz |
> 25 dB |
|
Channel separation at 15 kHz |
> 18 db |
|
Frequency range at - 3dB |
20-50.000 Hz |
|
Frequency response |
20-20.000 Hz + 2,5 / - 1 dB |
|
Tracking ability at 315Hz at recommended tracking force *) |
80 µm |
|
Compliance, dynamic, lateral |
12 µm/mN |
|
Stylus type |
Nude FG 80 / Ruby cantilever |
|
Stylus tip radius |
r/R 5/80 µm |
|
Tracking force range |
2,2-2,7 g (22-27 mN) |
|
Tracking force, recommended |
2,5 g (25mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
5 Ohm |
|
Recommended load impedance |
50-200 Ohm |
|
Cartridge body material |
Stainless Steel |
|
Cartridge colour |
Blue |
|
Cartridge weight |
10 g |
|
*) Typical value |
|
|
|
|
|
|
