ORTOFON MC 唱頭_01 |
|
|
|

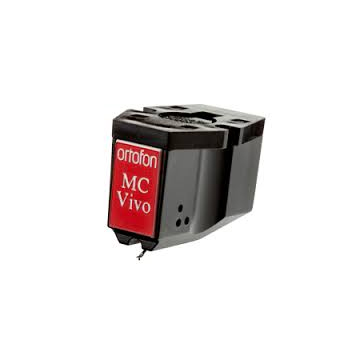

ORTOFON MC VIVO RED 唱頭 |
|
|
商品特色 |
|
|
|
|
Enter the exclusive world of Ortofon’s famous moving coil sound
A special 7-nines (99.9999% pure) copper wire manufactured in Japan.
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
A special and newly developed polycarbonate based resin, Lexan DMX, in Piano Black is used for manufacturing of the body. This revolutionary material improves rigidity and damping properties and also has a very durable scratch resistant surface. Rigidity is an important performance character as the plastic-body serves as basis for the generato. |
|
|
|
|
|
|
|
|
商品規格 |
|
Technical data
Output voltage at 1000 Hz, 5cm/sec. |
0,5 mV |
Channel balance at 1 kHz |
< 1,5 dB |
Channel separation at 1 kHz |
> 23 dB |
Channel separation at 15 kHz |
> 15 dB |
Frequency range at - 3dB |
20-25.000 Hz |
Frequency responce |
20-20.000 Hz ± 2 dB |
Tracking ability at 315Hz at recommended tracking force *) |
> 65 µm |
Compliance, dynamic, lateral |
13 µm/mN |
Stylus type |
Elliptical diamond on alu cantilever |
Stylus tip radius |
r/R 8/18 µm |
Tracking force range |
1,6-2,0 g (16-20 mN) |
Tracking force, recommended |
1,8 g (18 mN) |
Tracking angle |
20° |
Internal impedance, DC resistance |
6 Ohm |
Recommended load impedance |
> 10 Ohm |
Cartridge body material |
Lexan DMX |
Cartridge colour |
Black |
Cartridge weight |
7 g |
|
|
|
|
|
|
