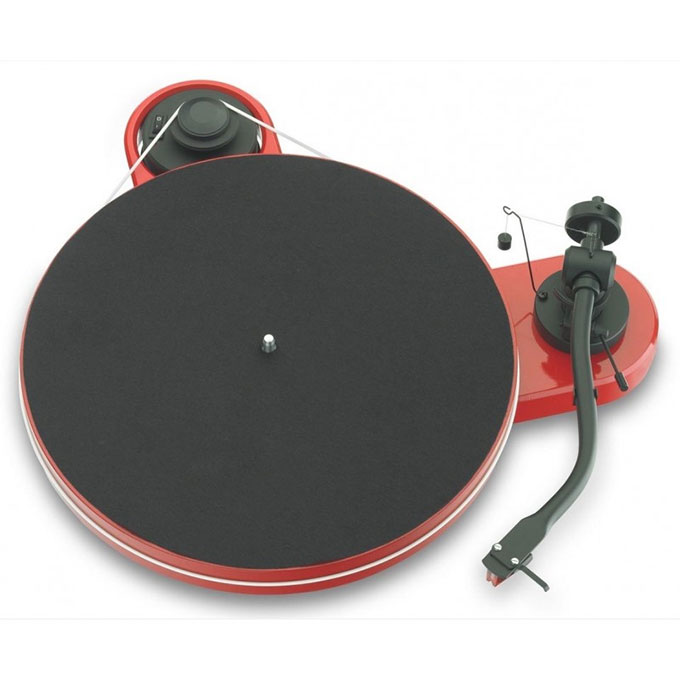

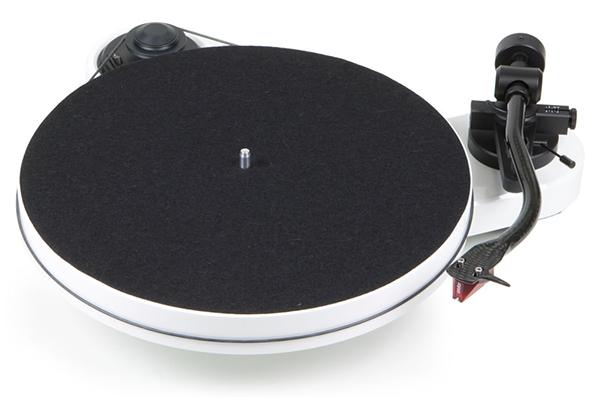

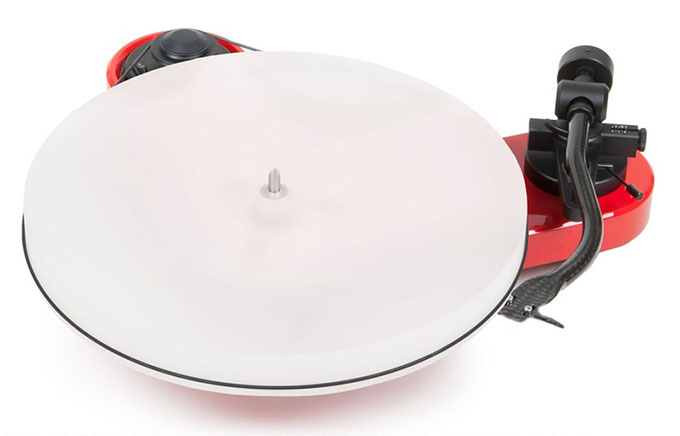

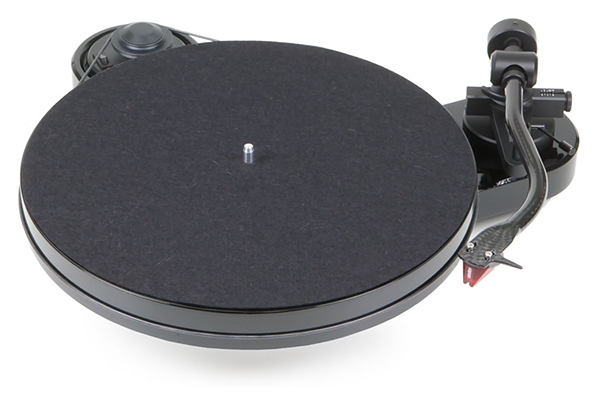

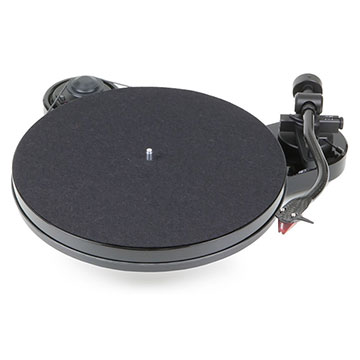

碳纖維抑振-Pro-Ject RPM 9 Carbon
轉速:33、45
驅動方式:皮帶驅動
轉盤:直徑300mm MDF
承軸: 反向式軸承與頂部的陶瓷球
抖動率:33: +/- 0.14% 45: +/- 0.13%
轉速飄移:33: +/- 0.27% 45: +/- 0.19%
訊噪比:- 71dB
唱臂:8.6吋碳纖維
有效臂長:218.5 mm
有效唱臂質量:13.5 g
超距:22mm
針壓:0 - 25mN
變壓器:15 V DC / 800mA
電源:110/240 V - 50 or 60 Hz
功率消耗:5 W max / < 0.5 W 待機模式
尺寸: 380 x 110 x 350mm (WxHxD)
淨重:3.8kg
Speed |
33, 45 (manual speed change) |
Drive principle |
belt drive |
Platter |
300mm MDF |
Mains bearing |
stainless steel axle with ceramic ball |
Wow & flutter |
33: +/- 0,14% I 45: +/- 0,13% |
Speed drift |
33: +/- 0,27% I 45: +/- 0,19% |
Signal to noise |
- 71dB |
|
Effective arm length |
218,5 mm |
Effective arm mass |
13,5 g |
Overhang |
22mm |
Tracking force |
0 - 25mN |
Included accessories |
15 volts DC / 500 mA power supply |
Power connection |
110/240 Volt - 50 or 60 Hz |
Power consumption |
5 watt max / < 0,5 watt standby |
Dimensions |
380 x 110 x 350mm (WxHxD) |
Weight |
3,8 kg net |
|
