MCINTOSH C52 前級擴大機

2-Channel Solid State Preampli
Supports DSD64, DSD128 & DSD256 files
8 band analog equalizer
16 inputs
產品型號 : C52
市場售價 : NT$388000.元
網路特價 : NT$388000.元
購買數量: (單位︰件)
貨物狀況 : 正常供貨




商品特色

The Absolute Sound
2019 Editors' Choice
Award Winner


The Absolute Sound
Golden Ear
Award Winner

Tone Audio
Exceptional Value
Award 2016

The feature packed C52 Preamplifier lets you connect virtually any of your analog components and digital music sources – including those that play the latest high resolution formats such as DSD files – to one easy-to-use device to enjoy them all.

"You will rule your world with the C52. Cool as all this is, it sounds fantastic too. No one combines just the right amount of bling and performance as McIntosh – that’s why they are a legend." - Tone Audio

"I can’t think of another component that manages to do so much so superlatively well, with no compromises in any ways that matter to me as an audio critic and music lover." - The Absolute Sound

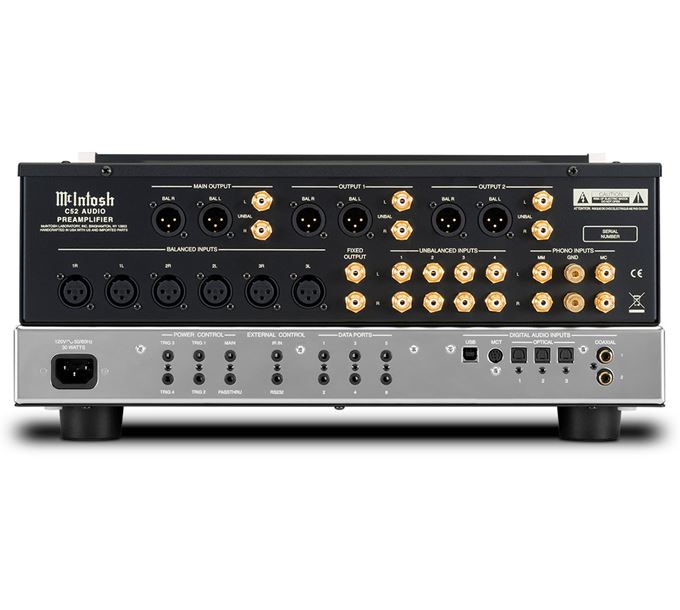

For connecting analog devices, it includes 3 balanced and 4 unbalanced fully assignable inputs plus 1 each of Moving Coil and Moving Magnet phono inputs for connecting a turntable and enjoying your vinyl collection. On the digital side, it has 3 optical, 2 coaxial and 1 USB input. The optical and coax inputs will decode digital music at up to 24-bit/192kHz for high resolution audio playback. The C52 is also capable of decoding and playing back DSD files for the latest in high fidelity performance; the USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 plus DXD 352.8kHz and DXD 384kHz. An MCT input offers a secure, custom DSD connection for playback of the high definition audio found on SACDs when paired with the MCT500 SACD/CD Transport to deliver the purest possible sound quality from your CD library. The C52 features a 24-bit/192kHz, DSD digital-to-analog-converter (DAC).

"Smooth? You bet. Realistic timbre? Check. Instruments and voices sound staggeringly realistic with no edge or glare whatsoever? Got it." - Tone Audio

"While this preamp provides a tidal wave of sound, it also shows off a good amount of detail... I keep hearing more stuff packed into the crevices of the music." - New Record Day

New to the C52 is that all inputs are available all of the time – even if you assign certain inputs to certain devices, giving you more freedom to configure your system the way you want. The outputs have also been updated to be easier to operate when bi-amping or tri-amping so that your highs and/or lows are not inadvertently turned off. An 8 band analog equalizer allows you to fine tune your various music sources just the way you like. For headphone listening, an added dimension can be brought to your music with the addition of Headphone Crossfeed Director (HXD®). The Home Theater Pass Through feature allows for seamless integration into your multi-channel home theater system.

This "battleship of a preamplifier" has all the connections one could want "and then some... McIntosh has taken the term 'comprehensively equipped' and run with it, for maximum flexibility and future proofing... If you're looking to indulge in your music instead of the sound it makes, then the C52 and MC301 are 'strongly recommended.'" - Hi-Fi+

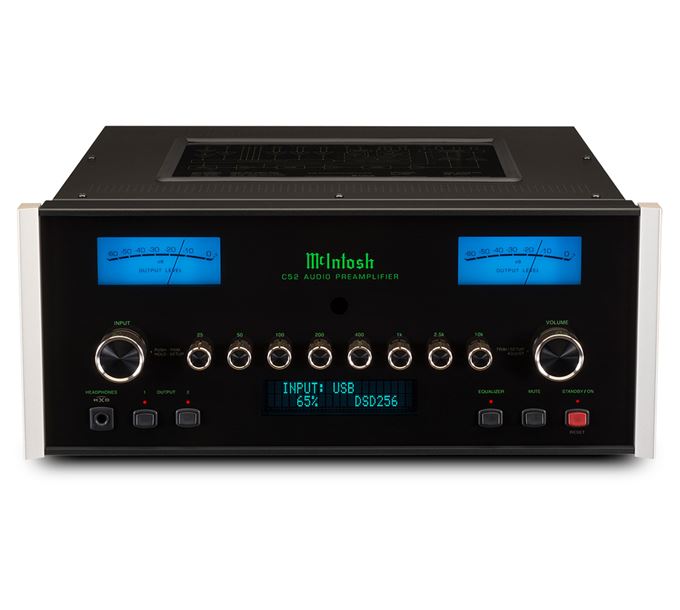

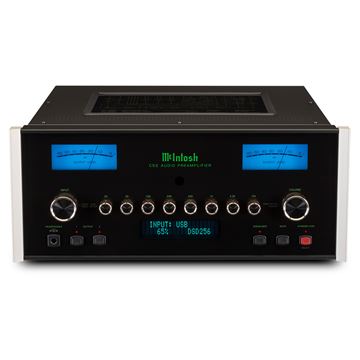

The C52’s classic black glass front panel, blue meters, knobs, illuminated logo and brushed aluminum end caps are all housed in an attractive polished stainless steel chassis that delivers a timeless look. It can be paired with a variety of amplifiersspeakersroom correction devicesCD playersturntablestuners and other source components to make a complete home audio system. Contact your local dealer to learn more.


商品規格

ELECTRONIC SPECIFICATIONS

  • Number of Channels
    2
  • Total Harmonic Distortion
    0.003%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced)
    16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced)
    900mV / 450mV
  • Sensitivity Phono (Moving Coil)
    0.45mV
  • Sensitivity Phono (Moving Magnet)
    4.5mV
  • Signal To Noise Ratio (High Level)
    100dB
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Voltage Gain (High Level)
    15dB
  • Voltage Gain (Moving Coil)
    60dB
  • Voltage Gain (Moving Magnet)
    40dB
  • Input Impedance (Balanced / Unbalanced)
    44K ohm, 22K ohm

CONNECTIVITY

  • Balanced Input
    3
  • Unbalanced Input
    4
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    2
  • Digital Optical Input
    3
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    0
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    3
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    3
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • Input Level Match
    Yes, +/- 6dB
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass
  • Service Port
    0

CONTROL

  • Tone Controls
    8 band
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 4 Trigger
  • Rear Panel Data Port
    6
  • Rear Panel IR Sensor Input
    Yes

GENERAL SPECIFICATIONS

  • Multi-Chassis or Single
    Single, two layer
  • Output Meters
    Yes
  • Vacuum Tube or Solid State
    Solid State
  • Power Consumption (On)
    30 Watts

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17.5" (44.45cm) x 7.6" (19.37cm) x 18" (45.72cm)
  • Weight
    27.5 lbs (12.5 kg)
  • Shipping Weight
    43 lbs (19.5 kg)
