MCINTOSH C47 前級擴大機

2-Channel Solid State Preampli
Supports DSD64, DSD128 & DSD256 files
7 analog and 5 digital inputs
產品型號 : C47
市場售價 : NT$240000.元
網路特價 : NT$240000.元
購買數量: (單位︰件)
貨物狀況 : 正常供貨




商品特色

The Absolute Sound
Golden Ear
Award Winner

Highly
Recommended


Enjoy your music the way you want with the versatile C47 Stereo Preamplifier. With a total of 12 inputs, you can connect most if not all of your music sources. It even plays many of the latest high resolution digital formats – including DSD files.

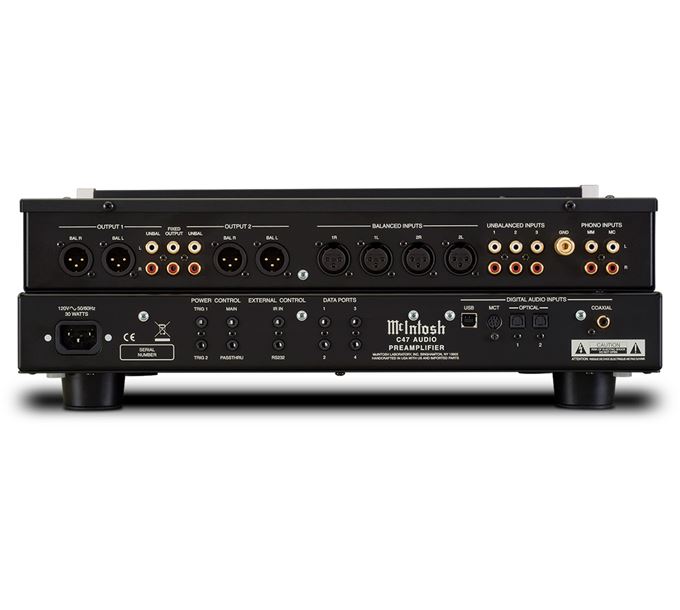

For analog audio, it includes 2 balanced and 3 unbalanced fully assignable inputs plus 1 Moving Coil and 1 Moving Magnet phono input for connecting a turntable. The digital inputs are comprised of 2 optical, 1 coaxial and 1 USB input. The optical and coax inputs will decode digital music at up to 24-bit/192kHz for high resolution audio playback. The C47 can also decode and play back high fidelity DSD files via the USB input, which accepts signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 along with DXD 352.8kHz and DXD 384kHz. To enjoy the high definition audio found on SACDs, you can connect the C47 to the MCT500 SACD/CD Transport via the MCT input to create a secure and custom DSD connection.

“A device designed without compromise... The highs are not aggressive, and the medium is transparent, very clear and detailed. The bass is clean and precise... Amazing clarity.” With high resolution DSD files, the reviewer had “never heard such sound reproduction.” - Son & Image

All inputs are available all of the time on the C47 – even if certain inputs are assigned to certain devices, giving you the freedom to configure your system your way. The outputs have also been redesigned for easier use when bi-amping so that your highs or lows are not accidentally turned off. Bass and treble tone controls allow for some fine tuning of your audio sources. Headphone Crossfeed Director (HXD®) brings added dimension to your headphone listening, while Home Theater Pass Through permits seamless integration into your multi-channel home theater system.

“The C47 and MC302 are very flexible and good at big movements, rich and unrestrained on expression of emotion. In both the voice and musical instruments, they are full of determination without even the slightest hesitation. This determination could make an appeal to the audiences fascinated by their superb performance.” - HiFi Review

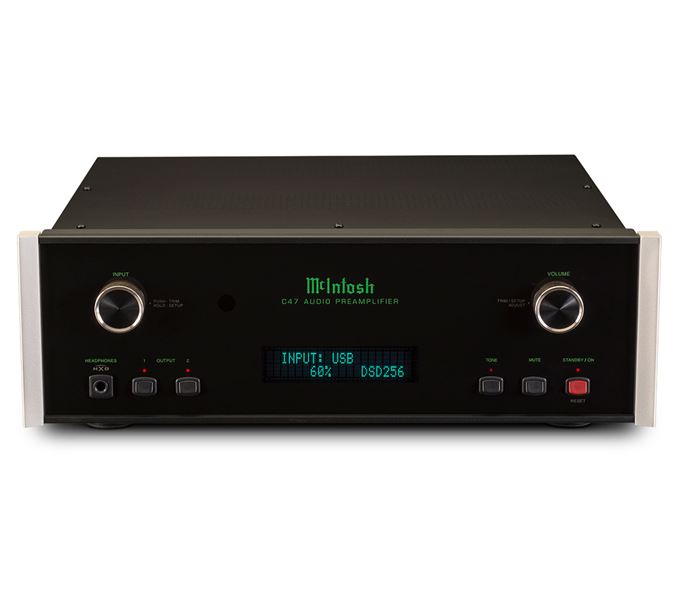

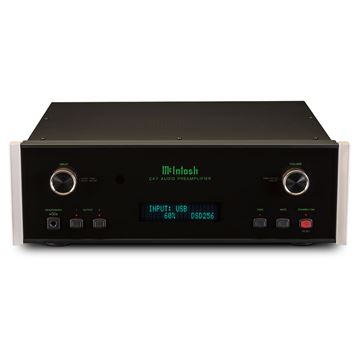

The C47 incorporates classic McIntosh design cues, including a black glass front panel, knobs, an illuminated logo and brushed aluminum end caps. It can easily be paired with a variety of amplifiersspeakersroom correction devicesCD playersturntablestuners and other source components to make a complete home audio system. Contact your local dealer to learn more.


商品規格

ELECTRONIC SPECIFICATIONS

  • Number of Channels
    2
  • Total Harmonic Distortion
    0.005%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced)
    16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced)
    900mV / 450mV
  • Sensitivity Phono (Moving Coil)
    0.45mV
  • Sensitivity Phono (Moving Magnet)
    4.5mV
  • Signal To Noise Ratio (High Level)
    100dB
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Voltage Gain (High Level)
    15dB
  • Voltage Gain (Moving Coil)
    60dB
  • Voltage Gain (Moving Magnet)
    40dB
  • Input Impedance (Balanced / Unbalanced)
    44K ohm, 22K ohm

CONNECTIVITY

  • Balanced Input
    2
  • Unbalanced Input
    3
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    1
  • Digital Optical Input
    2
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    0
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    2
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • Input Level Match
    Yes, +/- 6dB
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Service Port
    0

CONTROL

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 2 Trigger
  • Rear Panel Data Port
    4
  • Rear Panel IR Sensor Input
    Yes

GENERAL SPECIFICATIONS

  • Multi-Chassis or Single
    Single, two layer
  • Output Meters
    No
  • Vacuum Tube or Solid State
    Solid State
  • Power Consumption (On)
    30 Watts

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17.5" (44.45cm) x 6" (15.2cm) x 18" (45.72cm)
  • Weight
    23 lbs (10.4 kg)
  • Shipping Weight
    37.5 lbs (17 kg)
