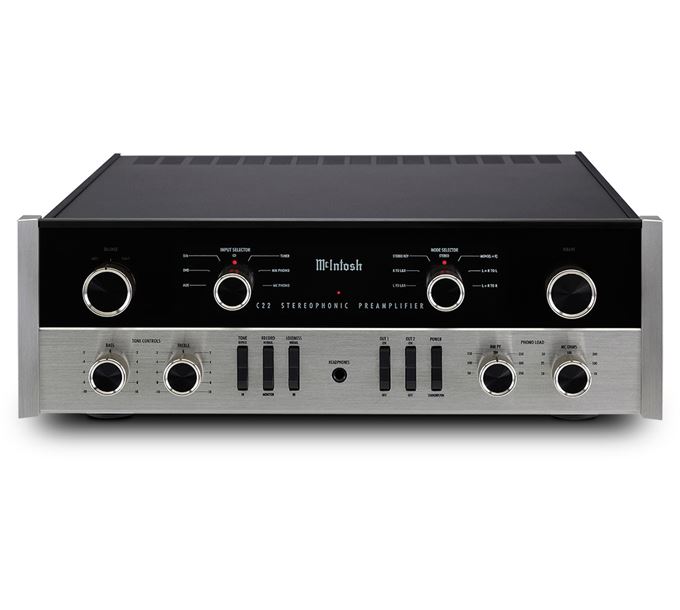

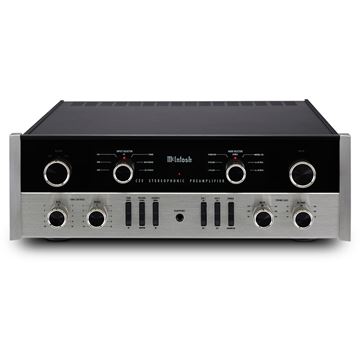

MCINTOSH C22 前級擴大機(真空管)

2-Channel Vacuum Tube Preampli
Retro styling, modern performance
10 inputs, 4 outputs
產品型號 : C22
市場售價 : NT$349,800 .元
網路特價 : NT$349,800 .元
購買數量: (單位︰件)
貨物狀況 : 正常供貨




商品特色

The Absolute Sound
2018 Editors' Choice
Award Winner


The Absolute Sound
2017 Editors' Choice
Award Winner


The Absolute Sound
2016 Product of the Year


The Absolute Sound
Golden Ear Award Winner

Featuring a cool, 1960s retro design, the C22 Vacuum Tube Preamplifier has been updated to modern standards to deliver a performance on par with any other McIntosh preamplifier. Electromagnetic input switching provides reliable, noiseless and distortion free operation. Low distortion levels of all types are less than 0.08%, allowing music to be presented with total transparency and accuracy.

"Absolutely lovely, completely involving and beautiful... Everybody should hear it just to experience how beautiful music reproduction in the home can be." - The Absolute Sound

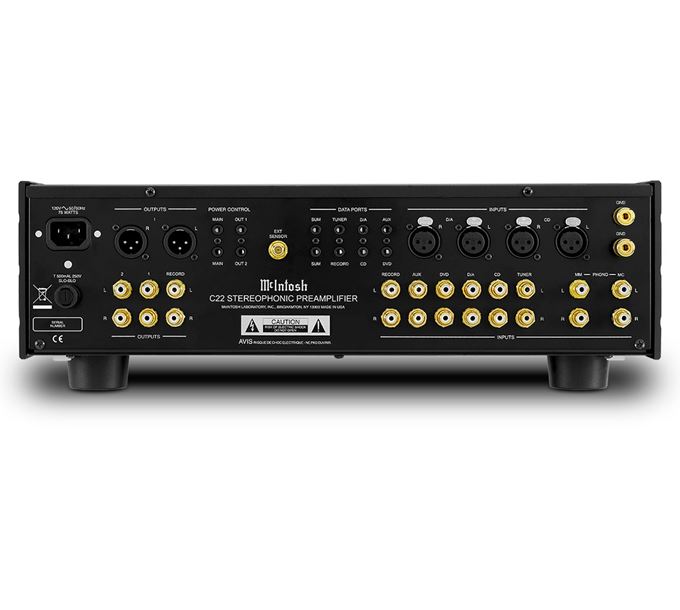

A total of 10 inputs include 2 balanced and 6 unbalanced along with Moving Coil and Moving Magnet phono input sections with selectable resistance and capacitive loading so every phono cartridge and turntable can be perfectly matched to produce the best sound. Outputs are comprised of 1 set of balanced and 3 sets of unbalanced connections. Bass and Treble tone controls with bypass feature allow you to listen to your favorite songs at your preferred tonal balance. Power control outputs will turn a complete McIntosh system on or off using the front panel or remote control.

"A beautiful 'you are there' quality to the music." - Enjoy The Music

While featuring a retro look, timeless McIntosh design cues such as a partial black glass front panel, knobs and brushed aluminum end caps allows the C22 to seamlessly blend in with other McIntosh components to create one cohesive system. Contact your local dealer to learn more.


商品規格

ELECTRONIC SPECIFICATIONS

  • Number of Channels
    2
  • Total Harmonic Distortion
    0.08%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -1dB from 10Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced)
    16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced)
    900mV / 450mV
  • Sensitivity Phono (Moving Coil)
    0.45mV
  • Sensitivity Phono (Moving Magnet)
    4.5mV
  • Signal To Noise Ratio (High Level)
    98dB
  • Signal To Noise Ratio (Moving Coil)
    60dB
  • Signal To Noise Ratio (Moving Magnet)
    60dB
  • Voltage Gain (High Level)
    15dB
  • Voltage Gain (Moving Coil)
    60dB
  • Voltage Gain (Moving Magnet)
    40dB
  • Input Impedance (Balanced / Unbalanced)
    20K ohm, 20K ohm

CONNECTIVITY

  • Balanced Input
    2
  • Unbalanced Input
    6
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital MCT (DIN) Input
    0
  • Digital USB Input
    0
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    1
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4"
  • Input Level Match
    No
  • Home Theater PassThru
    No
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass
  • Service Port
    0

CONTROL

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Bypass: Yes
    Input Assign: No
  • RS232 Control Input
    No
  • Power Control Output
    2 Main, 2 Switched
  • Rear Panel Data Port
    8
  • Rear Panel IR Sensor Input
    No

GENERAL SPECIFICATIONS

  • Multi-Chassis or Single
    Single
  • Output Meters
    No
  • Vacuum Tube or Solid State
    Tube, 6 ea. 12AX7a
  • Power Consumption (On)
    75 watts

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
  • Weight
    27 lbs (12.25kg)
  • Shipping Weight
    43.4 lbs (19.68kg)
