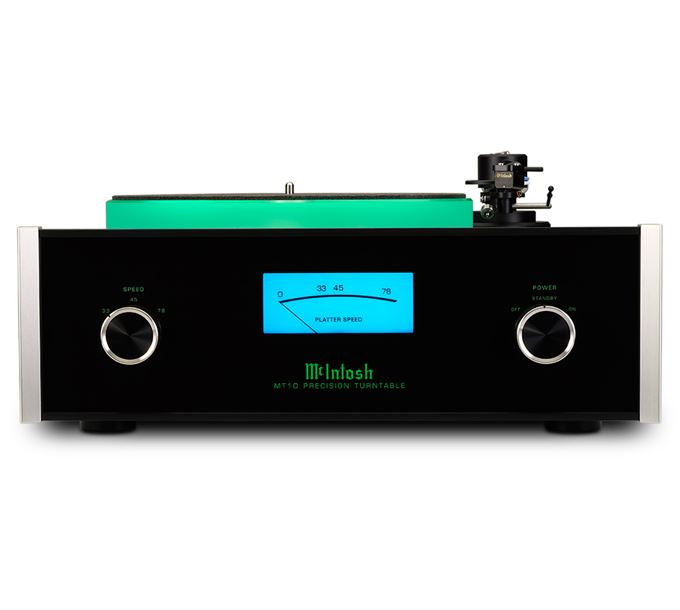

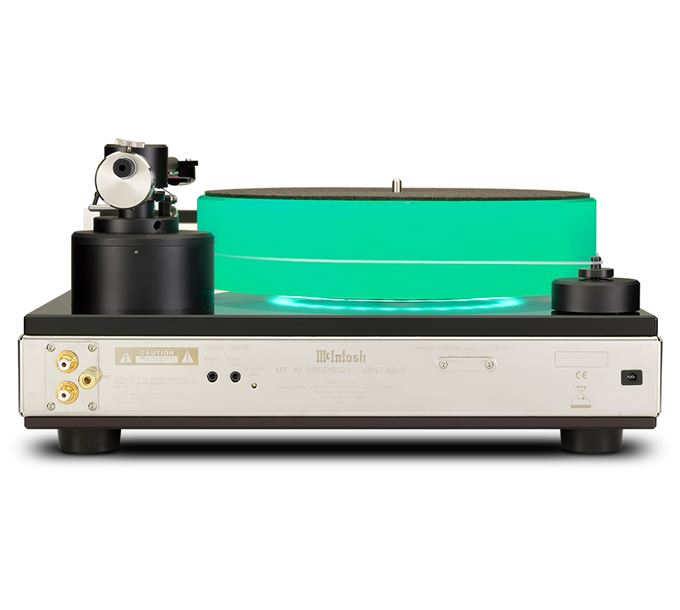

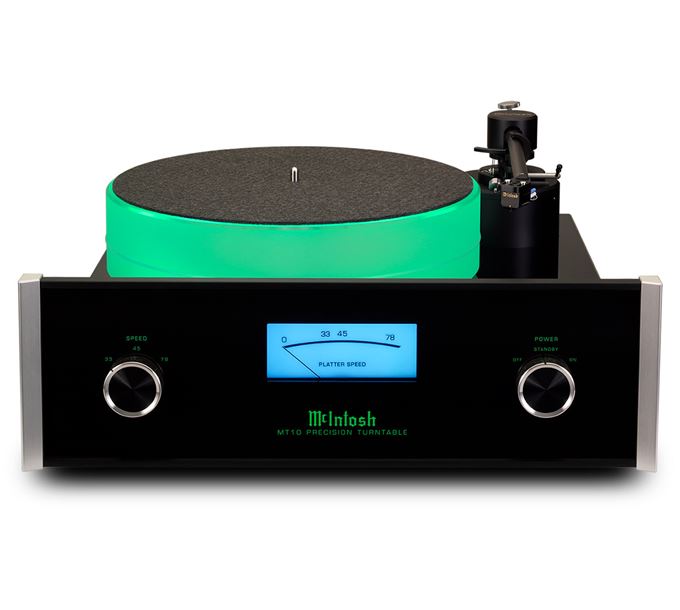

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 Precision Turntable delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable. Contact your local dealer to learn more.
商品規格
CARTRIDGE SPECIFICATIONS
Cartridge Type
Moving Coil, Low Output
Output Level
0.5 mV at 5 cm/s
Load Impedance
400 to 500 Ohms recommended
Frequency Response
20Hz to 50kHz
Channel Separation
Greater than 30dB at 1Khz
Compliance
6 x 10-6 cm/dyne
Recommended Tracking Force
2.4 g
Channel Difference
Less than 0.3dB at 1kHz
Total Mass
11 g
Stylus
Elliptical Diamond
Cantilever Material
Aluminum
TONEARM SPECIFICATIONS
Bearing
Sapphire and Ceramic
Arm Tube
Dural-Aluminum
Counterweight
Eccentric
Adjustments
Vertical Tracking Angle, Antiskate, Azimuth
TURNTABLE SPECIFICATIONS
Playback Speeds
33-1/3, 45 and 78 rpm
Motor Type
DC Brushless
Speed Control
Electronic w/ braking feature
Platter
Silicon Acrylic
Platter Bearing
Magnetic Suspended Ceramic
Signal To Noise Ratio
41dB - 44dB
Wow & Flutter
0.10% - 0.15%
CONNECTIVITY
Stereo Outputs Unbalanced
1
CONTROL
Power Control Input
1
Power Control Output
1
Platter Light
Yes
Speed Control Fine Adjustment
Yes
GENERAL SPECIFICATIONS
Dust Cover Included
No
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)
17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed.
