MCINTOSH MR87 調諧器

AM/FM Tuner
Proprietary radio-frequency circuitry
Advanced low distortion performance
產品型號 : MR87
市場售價 : NT$238000.元
網路特價 : NT$238000.元
購買數量: (單位︰件)
貨物狀況 : 正常供貨




商品特色

McIntosh has a long and distinguished history with tuners. The MR78 from the early 1970s is considered by many to be one of – if not the best – tuners ever made. The MR87 AM/FM Tuner continues this legacy by allowing you to enjoy the multitude of free music streaming over the airwaves.

It features proprietary radio-frequency (RF) circuitry to receive strong FM signals from nearby stations – something that can overload other tuners – without distortion while also receiving weaker FM signals located further away with little to no noise. The included RAA2 AM antenna features a 20-foot (6m) long cable that allows flexibility in placing the antenna in order to achieve the best AM reception. The MR87's advanced signal quality monitor can display the multipath and noise levels of the incoming RF signal to help fine tune antenna placement for optimal reception.

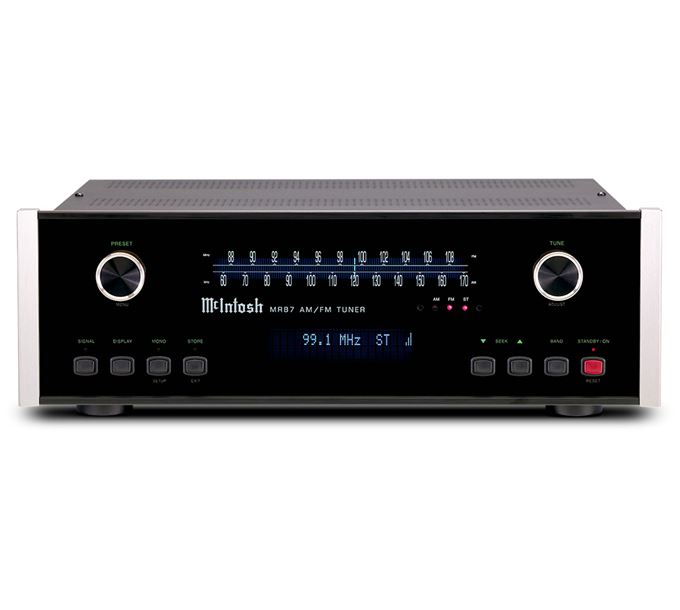

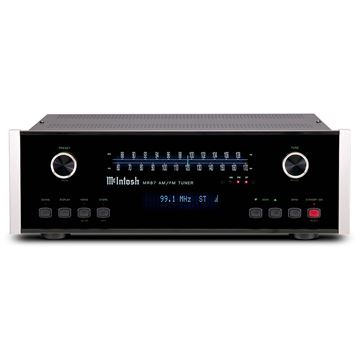

AM and FM stations may be luxuriously tuned using the smooth acting tuning knob and glass dial with illuminated pointer. The FM tuner includes Radio Data System (RDS) support, allowing the digital readout to display various information such as station name, music genre, artist name and song title when transmitted by the station. Up to 20 stations in each the AM and FM band may be stored in memory. Stations may be scanned with either the front panel controls or remotely from the included remote control. Advanced DSP tuning minimizes multipath tuning noise for clear audio quality. Both analog and digital outputs are included to connect the MR87 to your preamplifier or other system components.

The MR87’s classic black glass front panel, knobs and brushed aluminum end caps are all housed in an attractive polished stainless steel chassis that delivers a timeless look. It can be paired with a variety of amplifiersspeakersroom correction devicesCD playersturntableshome theater processors and other source components to make a complete home audio system. Contact your local dealer to learn more.


商品規格

FM GENERAL SPECIFICATIONS

  • FM Tuning Range
    87.5MHz - 108.0MHz (Europe)
    87.9MHz - 107.9MHz (USA)
    76MHz - 90MHz (Japan)
  • FM Channel Spacing
    50kHz, 100kHz or 200kHz
  • FM Antenna Input
    75 ohms, Type “F” Coax connector

FM ANALOG SPECIFICATIONS

  • Useable Sensitivity
    2.2uV (18.1dBf)
  • 50dB Quieting Sensitivity
    1.5uV (14.8dBf)
  • Signal To Noise Ratio
    Mono: 70dB
    Stereo: 68dB
  • Frequency Response
    ±1dB 20Hz to 15,000Hz
  • Total Harmonic Distortion
    Mono: 0.4%
    Stereo: 0.8%
  • Channel Selectivity
    60dB Adjacent Channel
    66dB Alternate Channel
  • Stereo Separation
    38dB

AM GENERAL SPECIFICATIONS

  • AM Tuning Range
    522kHz - 1602kHz (Europe)
    530kHz - 1710kHz (USA)
    522kHz - 1611kHz (Japan)
  • AM Channel Spacing
    10kHz
  • AM Antenna Input
    Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)

AM ANALOG SPECIFICATIONS

  • Sensitivity
    350uV/m
  • Signal To Noise Ratio
    50dB
  • Frequency Response
    0dB, -6dB 50Hz to 3,000Hz
  • Total Harmonic Distortion
    0.5%
  • Selectivity
    45dB Adjacent Channel

DIGITAL AUDIO SPECIFICATIONS

  • Digital Coaxial Output
    0.5V p-p/75 ohm
  • Digital Optical Output
    -15dbm to -21dbm
  • Sampling Frequency
    48kHz

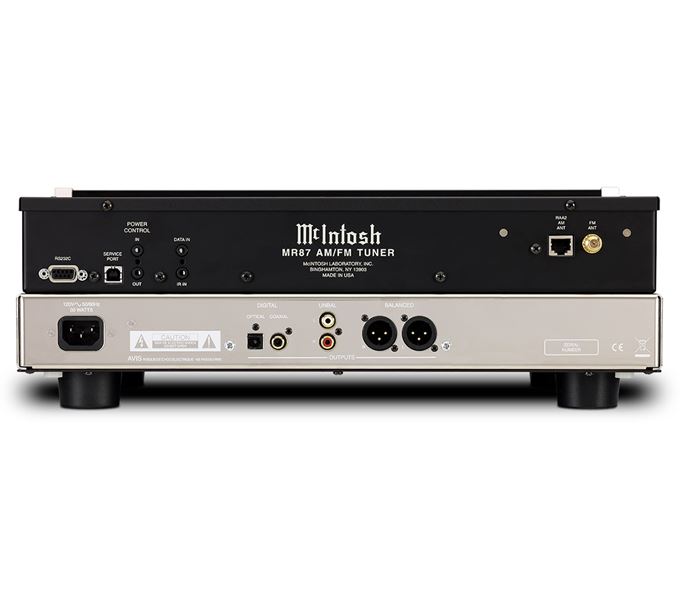

CONNECTIVITY

  • Outputs Unbalanced
    1 Stereo
  • Outputs Balanced
    1 Stereo
  • Digital Coaxial Output
    1
  • Digital Optical Output
    1
  • AM Antenna Input
    1
  • FM Antenna Input
    1
  • XM Antenna Input
    0
  • Service Port
    Yes

CONTROL

  • Rear Panel Data Input
    Yes
  • Rear Panel IR Sensor Input
    Yes
  • Power Control Input
    Yes
  • Power Control Output
    Yes
  • RS232 Control Input
    Yes

GENERAL SPECIFICATIONS

  • Bands
    AM/FM
  • Rated Output
    1Vms Unbalanced
    2Vms Balanced
  • Output Impedance
    100 ohms Unbalanced or Balanced
  • Standby Power Requirement
    <0.5 watt

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
  • Weight
    25.5 lbs (11.6 kg)
  • Shipping Weight
    40 lbs (18.1 kg)
