頻率響應 :
20 Hz to 20 kHz +0, -0.10 dB
<0.5 Hz to 180 kHz +0, -3 dB
訊噪比 :
>107 dB, wideband, unweighted, referred to full power output
>117 dB, "A"-weighted
增益 :
25.5 dB
總諧波失真 :
<0.02% at 1 kHz, at 300 W, 8 Ω
<0.15% at 20 kHz, at 300 W, 8 Ω
輸入阻抗 :
Single-ended: 100 kΩ
Balanced: 200 kΩ
CAST: 75 Ω
輸入靈敏度 :
Single-ended or balanced: 2.60 V RMS
CAST: 2.60 mA RMS
輸出功率 :
300 W RMS at 8 Ω
600 W RMS at 4 Ω
1200 W RMS at 2 Ω
輸出電壓 :
139 V peak-to-peak
49 V RMS
輸出電流 :
35 A peak
輸出阻抗 :
<0.040 Ohms at 20 Hz
<0.053 Ohms, 20 Hz to 20 kHz

阻尼因數 : (referred to 8 ohms)
>200 at 20 Hz, referred to 8 Ω
>150, 20 Hz to 20 kHz, referred to 8 Ω
耗電量 :
Standby: 150 W
Idle: 320 W
Maximum: 3400 W
.

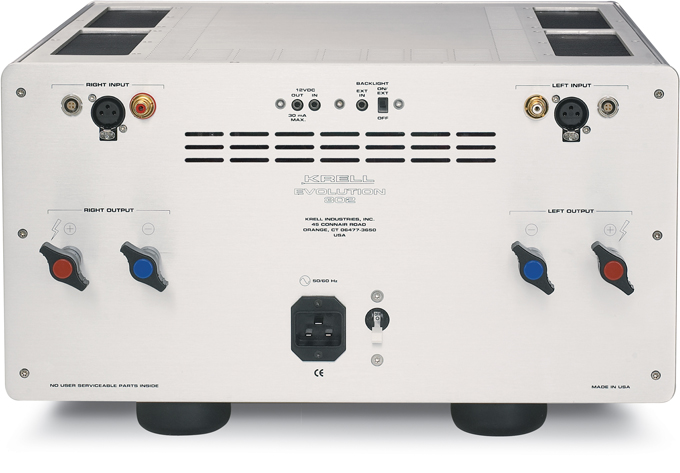

訊號輸入:
2 single-ended via RCA connector
2 balanced via XLR connector
2 CAST via 4-pin bayonet connector
訊號輸出 :
2 pairs Krell binding posts
規格尺寸 :
17.3 in. W x 9.8 in. H x 20.7 in. D
438 mm W x 248 mm H x 525 mm D
重量 :
Shipped: 138 lb., 62.4 kg
Unit Only: 120 lb., 54.3 kg
