頻率響應 :
20 Hz to 20 kHz +0, -0.13 dB
<0.5 Hz to 150 kHz +0, -3 dB
訊噪比 :
>108 dB, wideband,unweighted, referred to full power output
>118 dB, "A"-weighted
增益 :
25.4 dB
總諧波失真 :
<0.02% at 1 kHz, at 400 W, 8 Ohms
<0.15% at 20 kHz, at 400 W, 8 Ohms
輸入阻抗 :
Single Ended: 100 kOhms
Balanced: 200 kOhms
CAST: 70 Ohms
輸入靈敏度 :
Single Ended or Balanced: 3.04 V rms
CAST: 3.04 mA rms
輸出功率 :
400 W RMS at 8 Ohms
800 W RMS at 4 Ohms
輸出電壓 :
160 V peak-to-peak
57 V RMS
輸出電流 :
37 A peak
輸出阻抗 :
<0.055 Ohms at 20 Hz
<0.064 Ohms, 20 Hz to 20 kHz

阻尼因數 : (referred to 8 ohms)
>145 at 20 Hz, referred to 8 Ohms
>125, 20 Hz to 20 kHz, referred to 8 Ohms
耗電量 :
Standby: 260 W
Idle: 390 W
Maximum: 3800 W

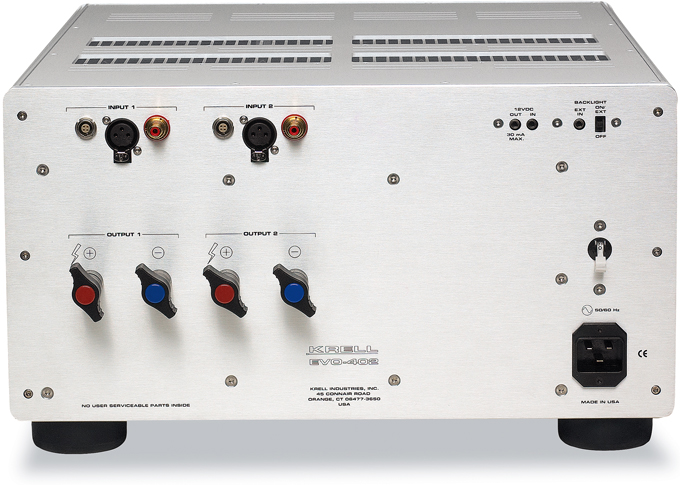

訊號輸入 :
2 single-ended via RCA connector
2 balanced via XLR connector
2 CAST via 4-pin bayonet connector
訊號輸出 :
2 pairs Krell binding posts
規格尺寸 :
17.25 in. W x 9.75 in. H x 22.05 in. D
438 mm W x 248 mm H x 560 mm D
重量 :
Shipped: 150 lb., 67.9 kg
Unit Only: 135 lb., 61.1 kg
