頻率響應 :
20 Hz to 20 kHz +0, -0.18 dB
<0.5 Hz to 120 kHz +0, -3 dB
訊噪比 :
>119 dB, "A"-weighted
增益 :
25.4 dB
總諧波失真 :
<0.02% at 1 kHz, at 600 W, 8 Ohms
<0.15% at 20 kHz, at 600 W, 8 Ohms
輸入阻抗 :
Single Ended: 100 kOhms
Balanced: 200 kOhms
CAST: 70 Ohms
輸入靈敏度 :
Single Ended or Balanced: 3.72 V rms
CAST: 3.72 mA rms
輸出功率 :
600 W RMS at 8 Ohms
1200 W RMS at 4 Ohms
2400 W RMS at 2 Ohms
輸出電壓 :
196 V peak-to-peak
69 V RMS
輸出電流 :
49 A peak
輸出阻抗 :
<0.030 Ohms, 20 Hz to 20 kHz
|
阻尼因數 : (referred to 8 ohms)
>270, 20 Hz to 20 kHz
耗電量 :
Standby: 260 W
Idle: 410 W
Maximum: 3800 W

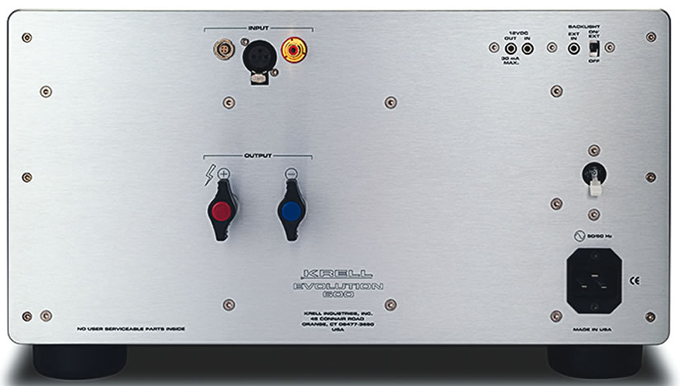

訊號輸入 :
1 single-ended via RCA connector
1 balanced via XLR connector
1 CAST via 4-pin bayonet connector
訊號輸出 :
1 pairs Krell binding posts
規格尺寸 :
17.3 in. W x 9.8 in. H x 22.1 in. D
438 mm W x 248 mm H x 560 mm D
重量 :
Shipped: 150 lb., 67.9 kg
Unit Only: 135 lb., 61.1 kg |
